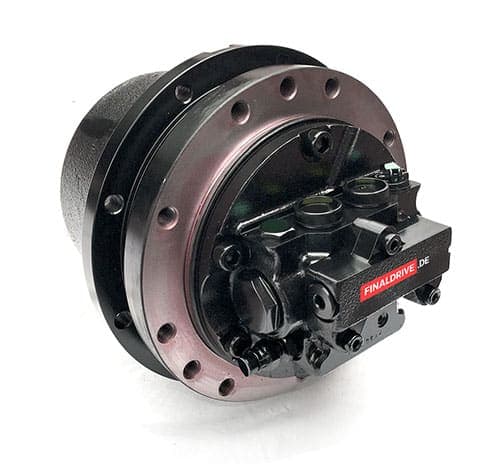

Schaeff HR13 final drive

Also: travel motor, track motor, track drive Schaeff HR13

In stockdispatched from our warehouse

Order by 12 noon, ships the same day

1.6 tMachine weight

23.0 kgDrive weight

4Hydraulic lines

2Speeds

Request a quote Specifications

Free and without obligation. Reply usually within 12 hours.

New, complete with travel motor and gearbox
12-month manufacturer warranty
Fit checked before we ship
Order by 12 noon, ships the same day

How it works, without a wrong purchase

Send a requestModel and speeds are enough, a photo of the type plate helps.
We check the fitYou get a binding quote, on request with several options, usually within 12 hours.
Confirm and goConfirmed by 12 noon, the drive ships the same day.

With over 21 years of experience we find the right drive. Often several options fit: for daily use take a high-end drive, for occasional or private jobs a lower-priced option is enough. You decide.

Schaeff HR13 final drive at a glance

This final drive replaces the track drive on your Schaeff HR13 like for like. You get the whole unit, travel motor and planetary gearbox, brand new. It fits the Schaeff HR13 mini excavator with an operating weight of 1.6 t.

At approx. 23.0 kg (sprocket approx. 7.0 kg), the Schaeff HR13 drive is a manageable unit for its class. It has 4 hydraulic ports and 2 speeds.

Two speeds means slow with full tractive force for digging work, fast for tracking across the site. The change-over runs through an extra pilot line on the travel motor. Besides the two main lines for forward and reverse, every travel motor has a case drain line. It must run freely back to the tank, otherwise the pressure pushes out the seals.

Depending on year of manufacture and version, more than one drive can fit the Schaeff HR13. Before you get a quote, we check with you which one it is.

In stock: confirm your quote for the Schaeff HR13 by 12 noon and the drive goes out by freight forwarder the same day. We ship by freight forwarder from our warehouse in Nuremberg, Germany. Within Germany it usually arrives in 1 to 2 working days, other European countries take a few days longer. The exact delivery time is in your quote.

Schaeff HR13 final drive specifications

Fits	Schaeff HR13
Machine weight	1.6 t
Drive weight	ca. 23.0 kg
Sprocket weight	ca. 7.0 kg
Hydraulic lines	4
Speeds	2
Scope of delivery	Complete with travel motor and planetary gearbox
Condition	New
Warranty	12-month manufacturer warranty
Availability	In stock, dispatched from our warehouse

How to check the drive fits

Tell us model and speeds. That is all we need to start. A photo of the type plate or the drive helps, but is optional.
Count lines and speeds. This drive has 4 ports and 2 speeds. If your machine has one speed only, do not plug the 2nd speed port, connect it to the case drain line with a T-piece.
Check the sprocket. The sprocket weighs approx. 7.0 kg. We clarify before quoting whether your sprocket fits or a new one is needed.

Not sure about your Schaeff HR13? Send us a photo of the type plate and we check before quoting.

Questions about the Schaeff HR13 final drive

Is this the right final drive for my Schaeff HR13?

The Schaeff HR13 takes different drives depending on year and version (this one: 4 lines, 2 speeds). Tell us the model and number of speeds, a photo is welcome. We confirm personally which drive fits.

Is the Schaeff HR13 drive supplied complete?

For the Schaeff HR13 you get the complete final drive: hydraulic travel motor with planetary gearbox, brand new, approx. 23.0 kg, including a 12-month manufacturer warranty.

Does the Schaeff HR13 final drive have one or two speeds?

This drive for the Schaeff HR13 has 2 speeds. If your machine has one speed only, connect the 2nd speed port to the case drain line with a T-piece, do not plug it.

When will the Schaeff HR13 drive arrive?

The Schaeff HR13 drive is in stock. Orders confirmed by 12 noon ship the same day. We ship by freight forwarder from our warehouse in Nuremberg, Germany. Within Germany it usually arrives in 1 to 2 working days, other European countries take a few days longer. The exact delivery time is in your quote.

Is the final drive available in different qualities?

Yes. Many excavators take several drives, in different types and manufacturer qualities. On request we offer you several options: a high-end drive for daily use, a lower-priced option for occasional or private jobs. You see price and difference and decide yourself.

Can I fit the Schaeff HR13 drive myself?

To avoid installation errors, we recommend having a specialist workshop fit the drive. If an installation error occurs, the warranty is void. Reconnecting all 4 hydraulic lines in the same place is key, especially the case drain line. The steps are in our removal and installation guide.
