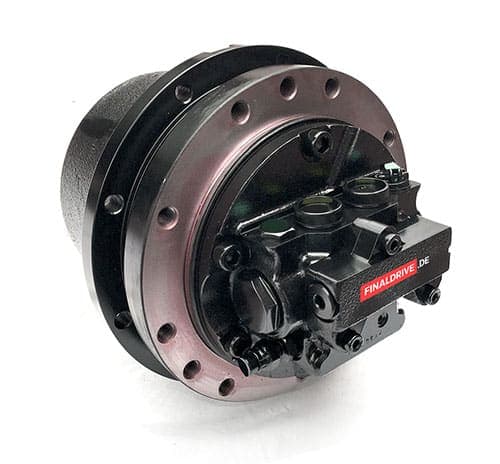

Schaeff HR02 final drive

Also: travel motor, track motor, track drive Schaeff HR02

In stockdispatched from our warehouse

Order by 12 noon, ships the same day

1.4 tMachine weight

23.0 kgDrive weight

4Hydraulic lines

2Speeds

Request a quote Specifications

Free and without obligation. Reply usually within 12 hours.

New, complete with travel motor and gearbox
12-month manufacturer warranty
Fit checked before we ship
Order by 12 noon, ships the same day

How it works, without a wrong purchase

Send a requestModel and speeds are enough, a photo of the type plate helps.
We check the fitYou get a binding quote, on request with several options, usually within 12 hours.
Confirm and goConfirmed by 12 noon, the drive ships the same day.

With over 21 years of experience we find the right drive. Often several options fit: for daily use take a high-end drive, for occasional or private jobs a lower-priced option is enough. You decide.

Schaeff HR02 final drive at a glance

The Schaeff HR02 final drive is a complete unit of hydraulic travel motor and planetary gearbox, brand new and ready to fit. The Schaeff HR02 is a mini excavator with 1.4 t operating weight, and this drive is matched to it.

At approx. 23.0 kg (sprocket approx. 7.0 kg), the Schaeff HR02 drive is a manageable unit for its class. Connections: 4 hydraulic lines, 2 speeds. Count them on your old drive before ordering.

The travel motor selects the second speed through a separate pilot line. In first speed the excavator has full tractive force, in second it travels faster. Besides the two main lines for forward and reverse, every travel motor has a case drain line. It must run freely back to the tank, otherwise the pressure pushes out the seals.

Depending on year of manufacture and version, more than one drive can fit the Schaeff HR02. Before you get a quote, we check with you which one it is.

In stock: confirm your quote for the Schaeff HR02 by 12 noon and the drive goes out by freight forwarder the same day. We ship by freight forwarder from our warehouse in Nuremberg, Germany. Within Germany it usually arrives in 1 to 2 working days, other European countries take a few days longer. The exact delivery time is in your quote.

Schaeff HR02 final drive specifications

Fits	Schaeff HR02
Machine weight	1.4 t
Drive weight	ca. 23.0 kg
Sprocket weight	ca. 7.0 kg
Hydraulic lines	4
Speeds	2
Scope of delivery	Complete with travel motor and planetary gearbox
Condition	New
Warranty	12-month manufacturer warranty
Availability	In stock, dispatched from our warehouse

How to check the drive fits

Tell us model and speeds. That is all we need to start. A photo of the type plate or the drive helps, but is optional.
Count lines and speeds. This drive has 4 ports and 2 speeds. If your machine has one speed only, do not plug the 2nd speed port, connect it to the case drain line with a T-piece.
Check the sprocket. The sprocket weighs approx. 7.0 kg. We clarify before quoting whether your sprocket fits or a new one is needed.

Not sure about your Schaeff HR02? Send us a photo of the type plate and we check before quoting.

Questions about the Schaeff HR02 final drive

How do I know which final drive fits my Schaeff HR02?

The Schaeff HR02 takes different drives depending on year and version (this one: 4 lines, 2 speeds). Tell us the model and number of speeds, a photo is welcome. We confirm personally which drive fits.

What do I get with the Schaeff HR02 final drive?

For the Schaeff HR02 you get the complete final drive: hydraulic travel motor with planetary gearbox, brand new, approx. 23.0 kg, including a 12-month manufacturer warranty.

Does the Schaeff HR02 final drive have one or two speeds?

This drive for the Schaeff HR02 has 2 speeds. If your machine has one speed only, connect the 2nd speed port to the case drain line with a T-piece, do not plug it.

When will the Schaeff HR02 drive arrive?

The Schaeff HR02 drive is in stock. Orders confirmed by 12 noon ship the same day. We ship by freight forwarder from our warehouse in Nuremberg, Germany. Within Germany it usually arrives in 1 to 2 working days, other European countries take a few days longer. The exact delivery time is in your quote.

Is the final drive available in different qualities?

Yes. Many excavators take several drives, in different types and manufacturer qualities. On request we offer you several options: a high-end drive for daily use, a lower-priced option for occasional or private jobs. You see price and difference and decide yourself.

Can I install the Schaeff HR02 final drive myself?

To avoid installation errors, we recommend having a specialist workshop fit the drive. If an installation error occurs, the warranty is void. Reconnecting all 4 hydraulic lines in the same place is key, especially the case drain line. The steps are in our removal and installation guide.
