Volvo ECR145 final drive at a glance

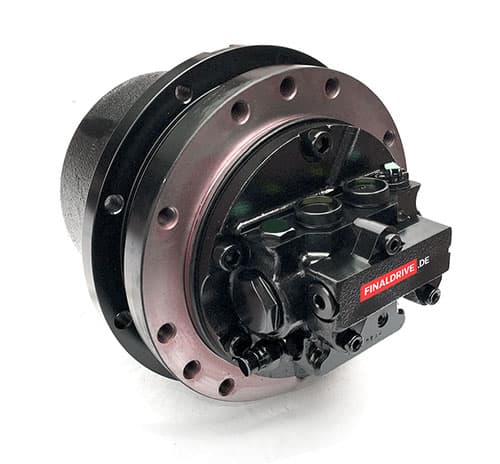

For the Volvo ECR145 we supply the complete final drive: travel motor and planetary gearbox in one unit, brand new. It fits the Volvo ECR145 crawler excavator with an operating weight of 15.5 t.
Weight of the Volvo ECR145 final drive: approx. 225.0 kg. It has 4 hydraulic ports and 2 speeds.
Two speeds means slow with full tractive force for digging work, fast for tracking across the site. The change-over runs through an extra pilot line on the travel motor. The two main lines drive the excavator forwards and backwards. The case drain line returns oil from the motor housing to the tank and must never be blocked.
Tell us the number of speeds and, if possible, send a photo of the type plate. We then confirm the right drive for your Volvo ECR145 before quoting.
The Volvo ECR145 final drive is in stock. Orders confirmed by 12 noon ship the same day. We ship by freight forwarder from our warehouse in Nuremberg, Germany. Within Germany it usually arrives in 1 to 2 working days, other European countries take a few days longer. The exact delivery time is in your quote.
Questions about the Volvo ECR145 final drive
How do I know which final drive fits my Volvo ECR145?
The Volvo ECR145 takes different drives depending on year and version (this one: 4 lines, 2 speeds). Tell us the model and number of speeds, a photo is welcome. We confirm personally which drive fits.
Is the Volvo ECR145 drive supplied complete?
For the Volvo ECR145 you get the complete final drive: hydraulic travel motor with planetary gearbox, brand new, approx. 225.0 kg, including a 12-month manufacturer warranty.
How many travel speeds does the Volvo ECR145 drive have?
This drive for the Volvo ECR145 has 2 speeds. If your machine has one speed only, connect the 2nd speed port to the case drain line with a T-piece, do not plug it.
How fast will I get the Volvo ECR145 drive?
The Volvo ECR145 drive is in stock. Orders confirmed by 12 noon ship the same day. We ship by freight forwarder from our warehouse in Nuremberg, Germany. Within Germany it usually arrives in 1 to 2 working days, other European countries take a few days longer. The exact delivery time is in your quote.
Is the final drive available in different qualities?
Yes. Many excavators take several drives, in different types and manufacturer qualities. On request we offer you several options: a high-end drive for daily use, a lower-priced option for occasional or private jobs. You see price and difference and decide yourself.
Who should fit the Volvo ECR145 final drive?
To avoid installation errors, we recommend having a specialist workshop fit the drive. If an installation error occurs, the warranty is void. Reconnecting all 4 hydraulic lines in the same place is key, especially the case drain line. The steps are in our removal and installation guide.
