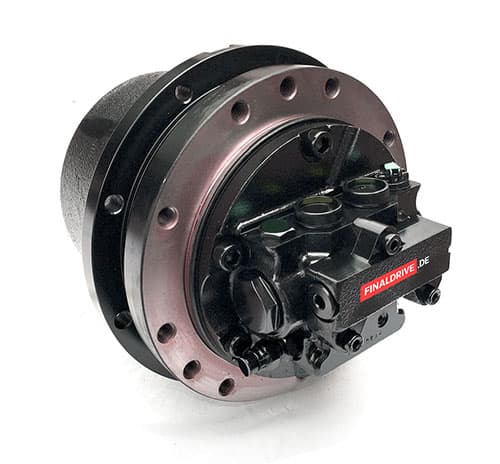

Schaeff HR4 final drive

Also: travel motor, track motor, track drive Schaeff HR4

Lead time on request

4.0 tMachine weight

40.0 kgDrive weight

4Hydraulic lines

2Speeds

Request a quote Specifications

Free and without obligation. Reply usually within 12 hours.

New, complete with travel motor and gearbox
12-month manufacturer warranty
Fit checked before we ship
Freight delivery across Europe

How it works, without a wrong purchase

Send a requestModel and speeds are enough, a photo of the type plate helps.
We check the fitYou get a binding quote, on request with several options, usually within 12 hours.
Confirm and goWe deliver by freight forwarder, the lead time is in the quote.

With over 21 years of experience we find the right drive. Often several options fit: for daily use take a high-end drive, for occasional or private jobs a lower-priced option is enough. You decide.

Schaeff HR4 final drive at a glance

For the Schaeff HR4 we supply the complete final drive: travel motor and planetary gearbox in one unit, brand new. It fits the Schaeff HR4 mini excavator with an operating weight of 4.0 t.

At approx. 40.0 kg (sprocket approx. 7.0 kg), the Schaeff HR4 drive is a manageable unit for its class. Connections: 4 hydraulic lines, 2 speeds. Count them on your old drive before ordering.

The travel motor selects the second speed through a separate pilot line. In first speed the excavator has full tractive force, in second it travels faster. The two main lines drive the excavator forwards and backwards. The case drain line returns oil from the motor housing to the tank and must never be blocked.

Depending on year of manufacture and version, more than one drive can fit the Schaeff HR4. Before you get a quote, we check with you which one it is.

For the Schaeff HR4 we source the drive on request and confirm a binding lead time with your quote, usually within 12 hours.

Schaeff HR4 final drive specifications

Fits	Schaeff HR4
Machine weight	4.0 t
Drive weight	ca. 40.0 kg
Sprocket weight	ca. 7.0 kg
Hydraulic lines	4
Speeds	2
Scope of delivery	Complete with travel motor and planetary gearbox
Condition	New
Warranty	12-month manufacturer warranty
Availability	Lead time on request

How to check the drive fits

Tell us model and speeds. That is all we need to start. A photo of the type plate or the drive helps, but is optional.
Count lines and speeds. This drive has 4 ports and 2 speeds. If your machine has one speed only, do not plug the 2nd speed port, connect it to the case drain line with a T-piece.
Check the sprocket. The sprocket weighs approx. 7.0 kg. We clarify before quoting whether your sprocket fits or a new one is needed.

Not sure about your Schaeff HR4? Send us a photo of the type plate and we check before quoting.

Questions about the Schaeff HR4 final drive

Is this the right final drive for my Schaeff HR4?

The Schaeff HR4 takes different drives depending on year and version (this one: 4 lines, 2 speeds). Tell us the model and number of speeds, a photo is welcome. We confirm personally which drive fits.

What do I get with the Schaeff HR4 final drive?

For the Schaeff HR4 you get the complete final drive: hydraulic travel motor with planetary gearbox, brand new, approx. 40.0 kg, including a 12-month manufacturer warranty.

Does the Schaeff HR4 final drive have one or two speeds?

This drive for the Schaeff HR4 has 2 speeds. If your machine has one speed only, connect the 2nd speed port to the case drain line with a T-piece, do not plug it.

How fast will I get the Schaeff HR4 drive?

We confirm the lead time with your quote, usually within 12 hours.

Is the final drive available in different qualities?

Yes. Many excavators take several drives, in different types and manufacturer qualities. On request we offer you several options: a high-end drive for daily use, a lower-priced option for occasional or private jobs. You see price and difference and decide yourself.

Can I fit the Schaeff HR4 drive myself?

To avoid installation errors, we recommend having a specialist workshop fit the drive. If an installation error occurs, the warranty is void. Reconnecting all 4 hydraulic lines in the same place is key, especially the case drain line. The steps are in our removal and installation guide.
